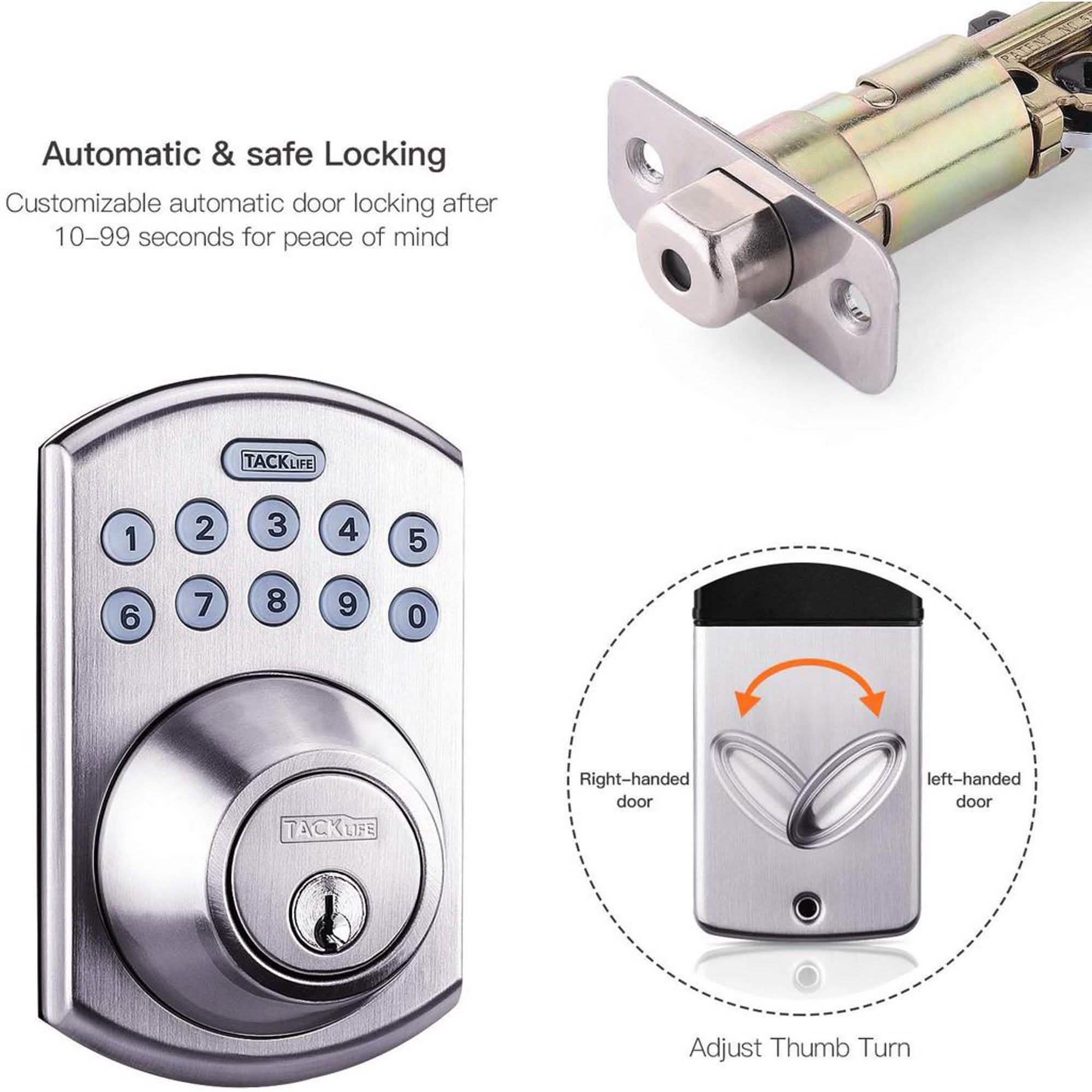

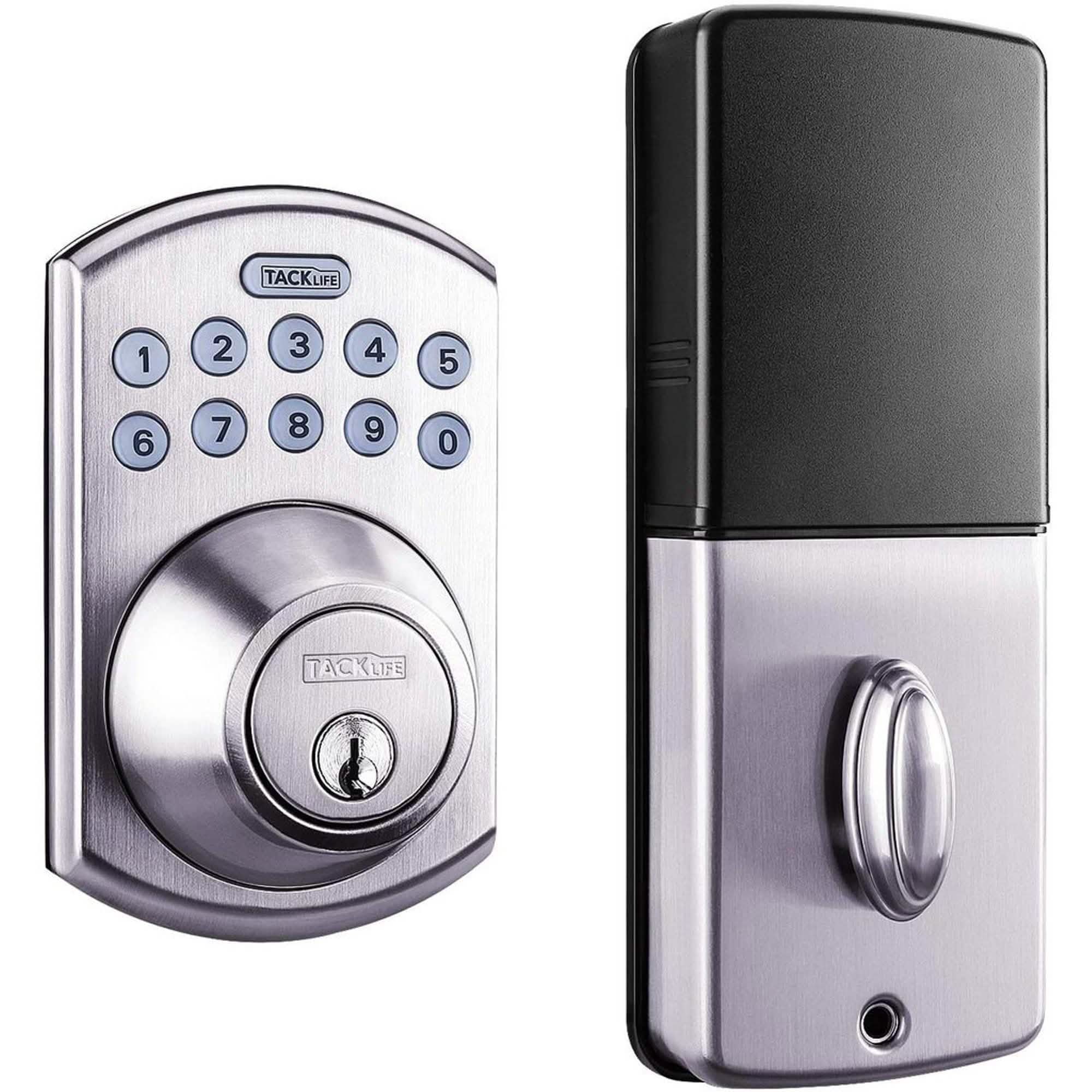

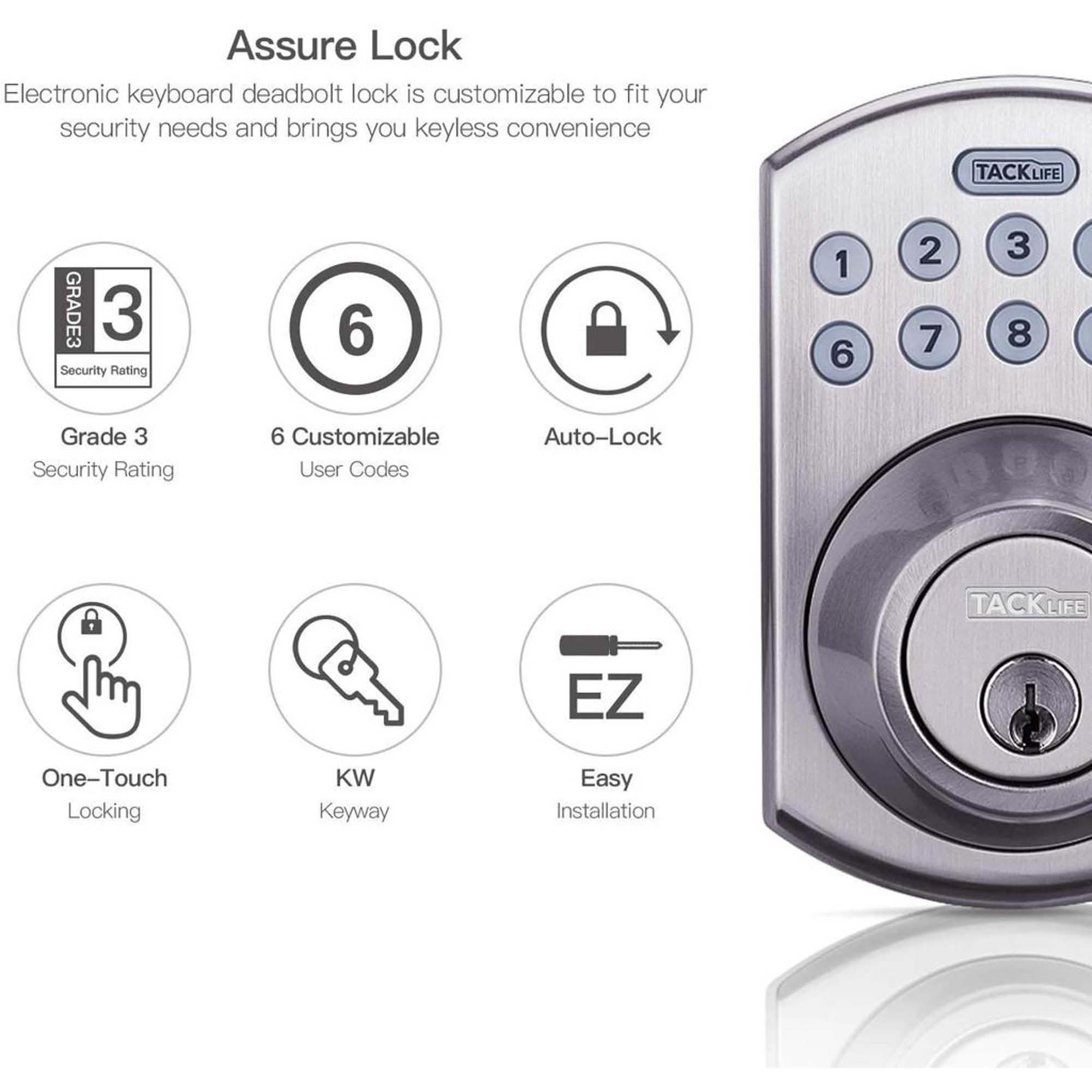

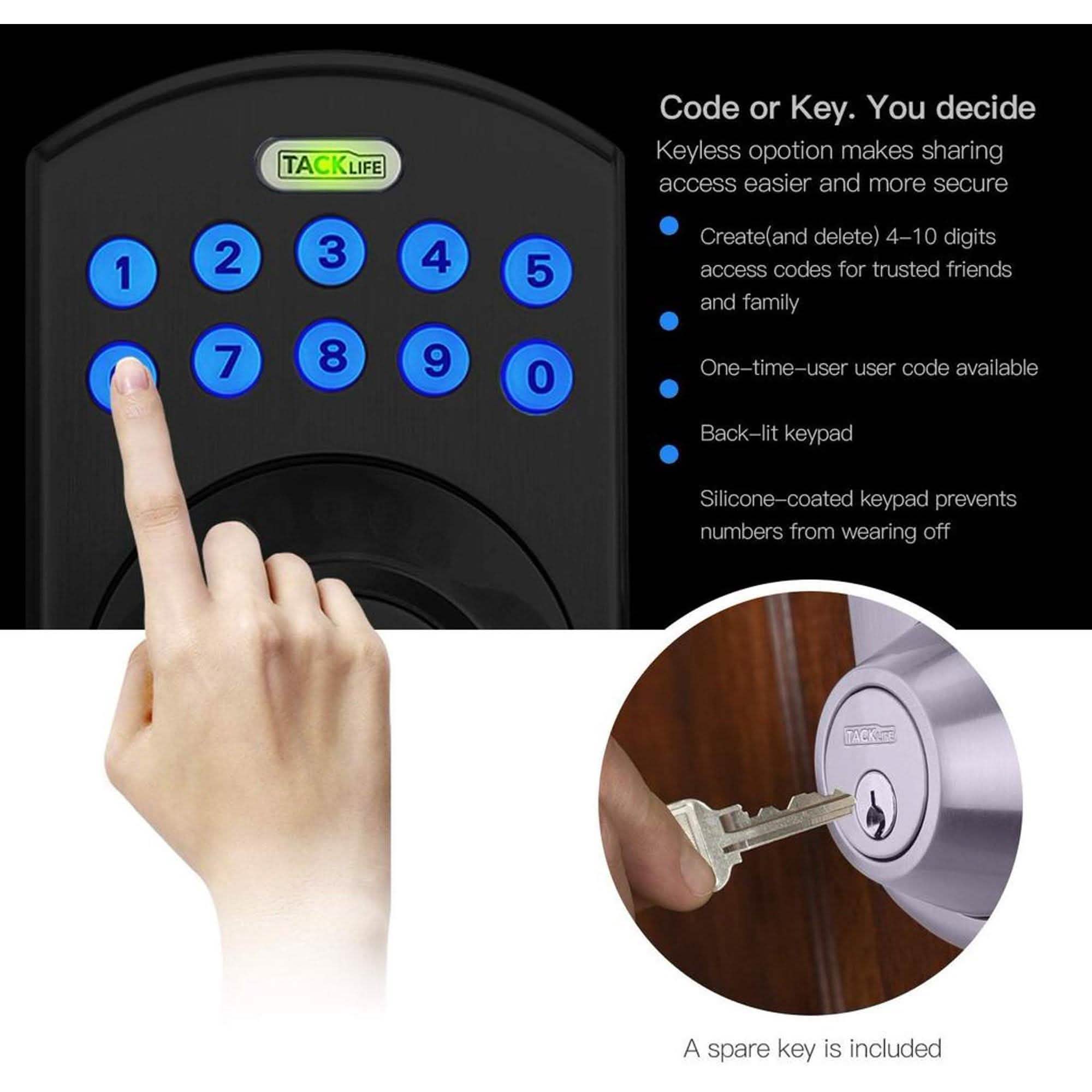

TACKLIFE Keypad Electronic Deadbolt Door Lock, Keyless Entry Door Lock With 1-Touch Motorized Auto-Locking

Description

Ideal for front doors, side & back doors, garage entry doors, etc.

Features:

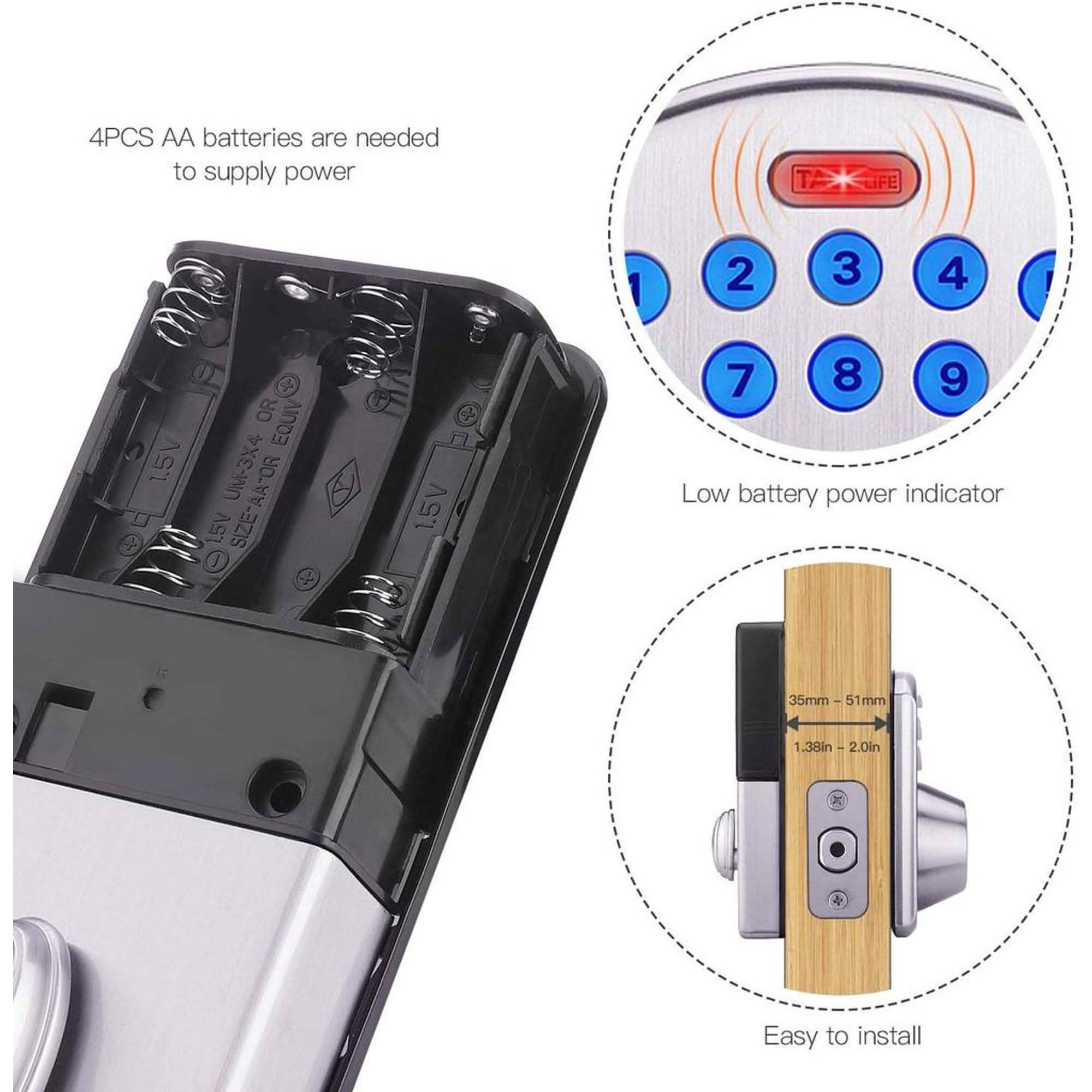

  • Power: DC6V, 4 AA (1.5v, LR6) alkaline batteries required.
  • Material: zinc alloy die casting
  • Surface: satin nickel
  • Suitable material: suitable for a wooden door thickness of 1-3/8" to 2" (35mm-51mm)
  • Latch: 2-3/8" to 2-3/4" (60mm-70mm) adjustable latch
  • Lock group: 5 beads, one-line CI lock group
  • Applicable ambient temperature: -20°C -70°C (without battery)
  • Applicable ambient humidity: 30%-90% (RH) (without battery)
Installation Note:
  • Do not use an electric screwdriver during installation or over-tighten the screws.
  • The black hub of the latch must be in the lower position when fitting the latch into the latch hole.
  • Fit the alignment of the deadbolt latch and strike plate.

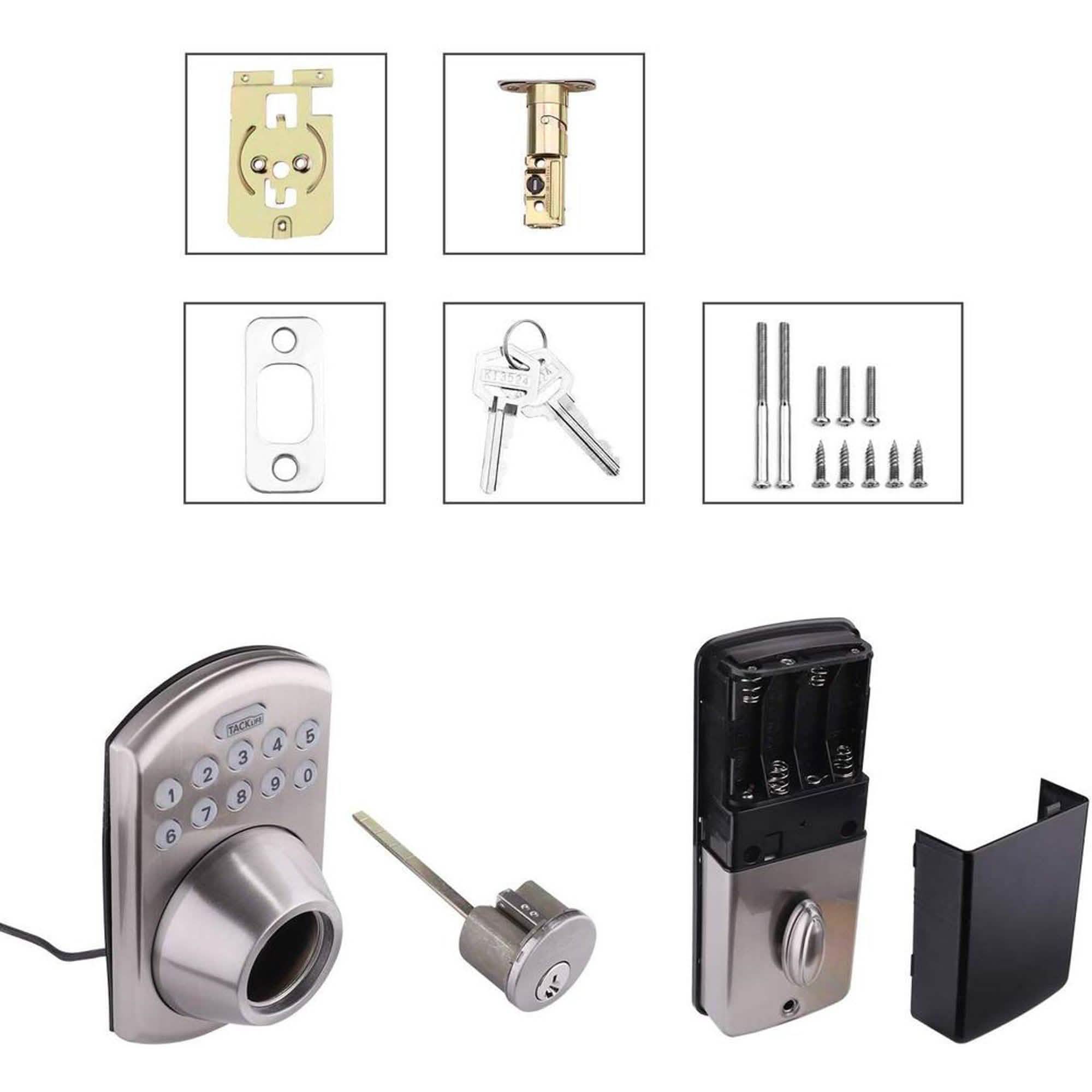

  • Install cylinder into the deadbolt keypad assembly with tailpiece in horizontal position inserted through the hub.
  • When installing the receiver assembly, the thumb turn piece is opposite to the latching side and ensures the deadbolt tailpiece is engaged with the turn piece.
  • Do the door handing identification process first after installation. Make sure the IC wire is connected firmly and the batteries are installed correctly and alive.
Programming Note:
  • Before programming, do the door handing identification process first, the lock needs to learn if your door is a Right-Hand door or a Left-Hand door.
  • Your lock can only be programmed in the unlocked position, every programming step should be done in 6 seconds.
  • If you delete all user code the keypad will no longer open the lock, you must use the key to enter the lock.
  • If you disable all user codes the keypad and auto-locking will no longer open the lock, you must use the key to enter the lock.
  • After restoring default settings, you must run the operation door handing identification process again before programming any other function.

TACKLIFE Keypad Electronic Deadbolt Door Lock, Keyless Entry Door Lock With 1-Touch Motorized Auto-Locking

Product form

Ideal for front doors, side & back doors, garage entry doors, etc. Features: Power: DC6V, 4 AA (1.5v, LR6) alkaline... Read more

SKU: 22316

Out of stock

$89.00  $68.00 Excl. VAT

    Description

    Ideal for front doors, side & back doors, garage entry doors, etc.

    Features:
    • Power: DC6V, 4 AA (1.5v, LR6) alkaline batteries required.
    • Material: zinc alloy die casting
    • Surface: satin nickel
    • Suitable material: suitable for a wooden door thickness of 1-3/8" to 2" (35mm-51mm)
    • Latch: 2-3/8" to 2-3/4" (60mm-70mm) adjustable latch
    • Lock group: 5 beads, one-line CI lock group
    • Applicable ambient temperature: -20°C -70°C (without battery)
    • Applicable ambient humidity: 30%-90% (RH) (without battery)
    Installation Note:
    • Do not use an electric screwdriver during installation or over-tighten the screws.
    • The black hub of the latch must be in the lower position when fitting the latch into the latch hole.
    • Fit the alignment of the deadbolt latch and strike plate.
    • Install cylinder into the deadbolt keypad assembly with tailpiece in horizontal position inserted through the hub.
    • When installing the receiver assembly, the thumb turn piece is opposite to the latching side and ensures the deadbolt tailpiece is engaged with the turn piece.
    • Do the door handing identification process first after installation. Make sure the IC wire is connected firmly and the batteries are installed correctly and alive.
    Programming Note:
    • Before programming, do the door handing identification process first, the lock needs to learn if your door is a Right-Hand door or a Left-Hand door.
    • Your lock can only be programmed in the unlocked position, every programming step should be done in 6 seconds.
    • If you delete all user code the keypad will no longer open the lock, you must use the key to enter the lock.
    • If you disable all user codes the keypad and auto-locking will no longer open the lock, you must use the key to enter the lock.
    • After restoring default settings, you must run the operation door handing identification process again before programming any other function.
