Description

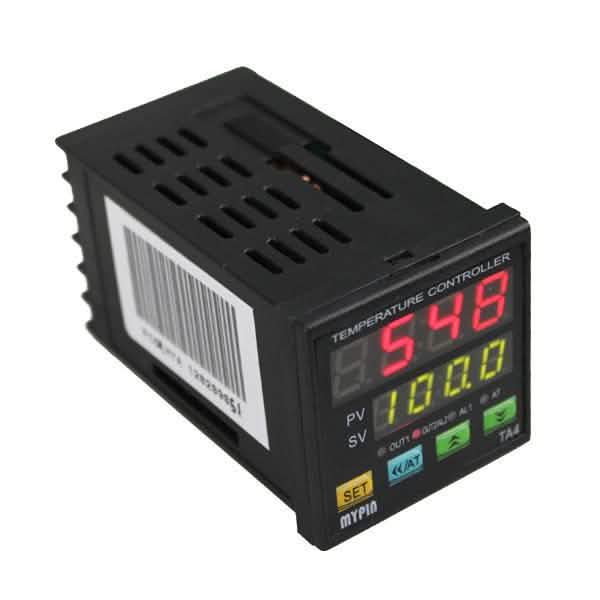

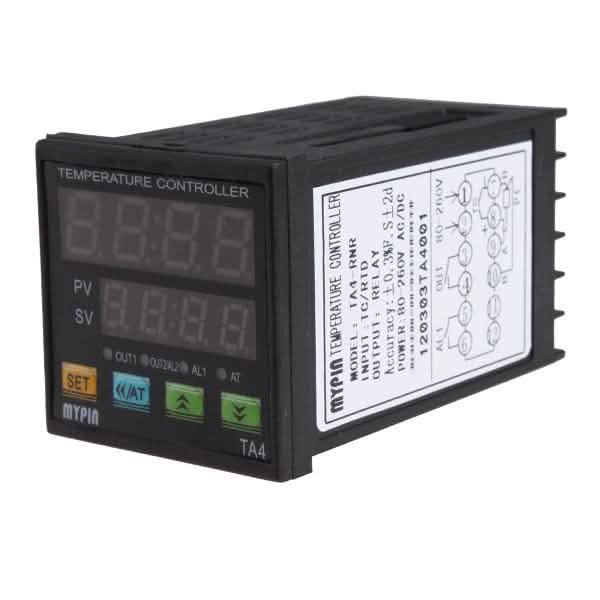

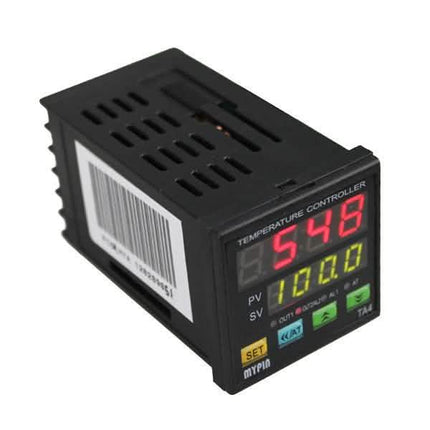

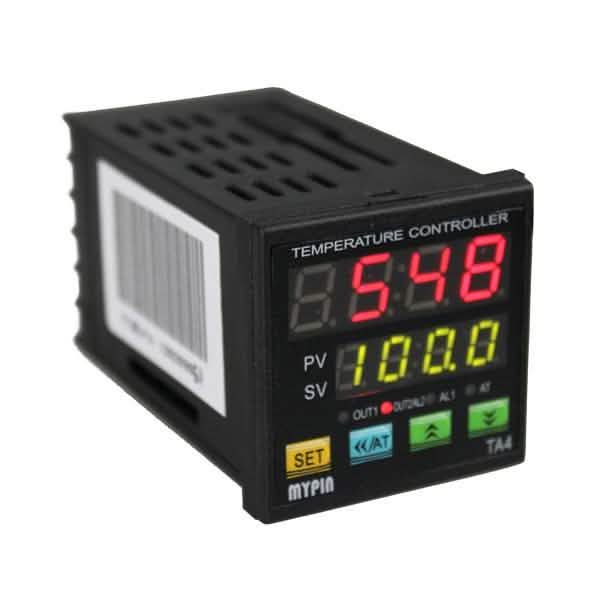

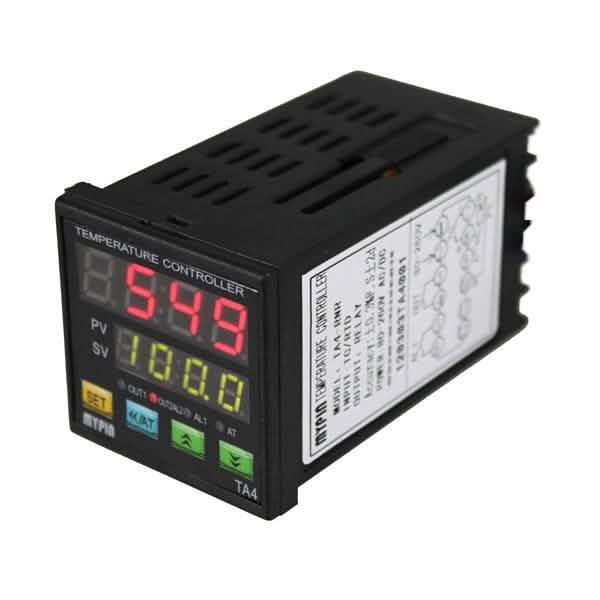

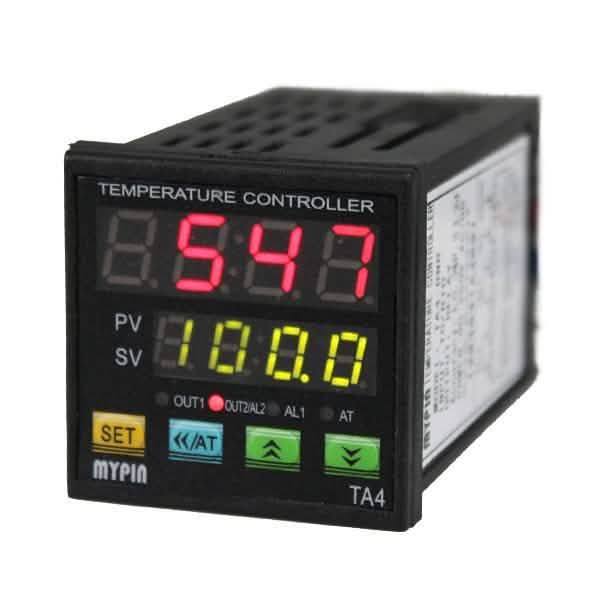

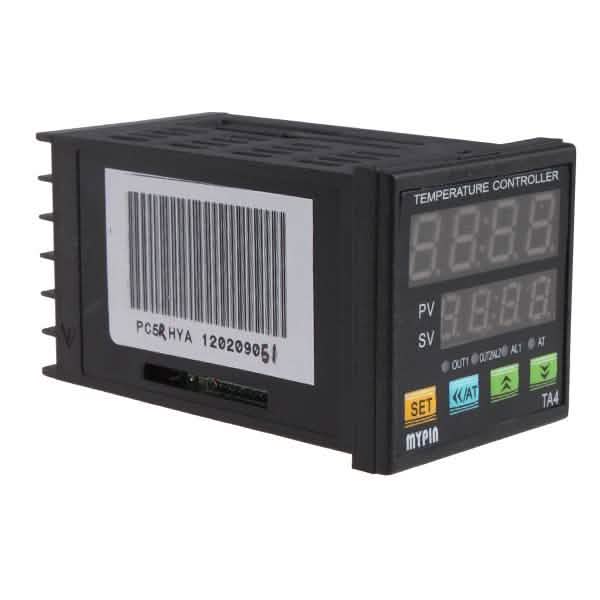

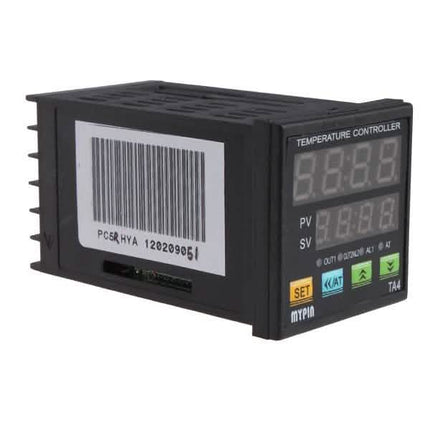

This is a bid for a dual display universal digital programmable temperature controller that supports many types of thermocouple sensor. It can be powered by 90-265V AC/DC , Comsumption5VA. DIN 1/16. 3 built-in Auto-Tuning Time Proportion PID Algorithms to choose from for different applications or environments to be controlled. (for a variety of industries or home projects, heating or cooling applications.)
Features:

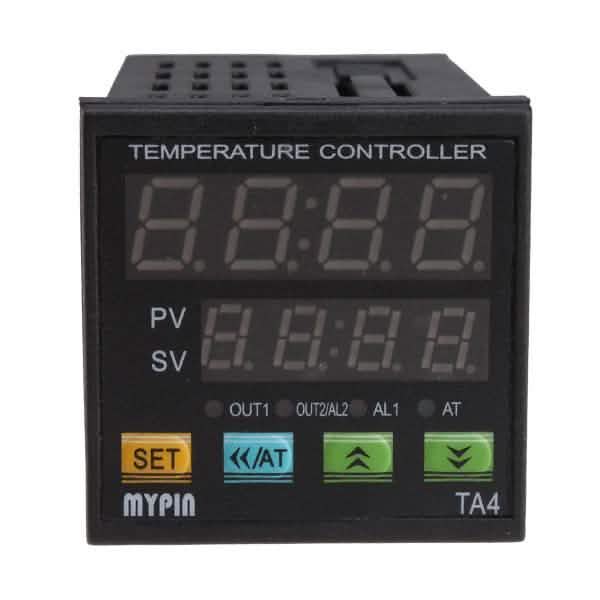

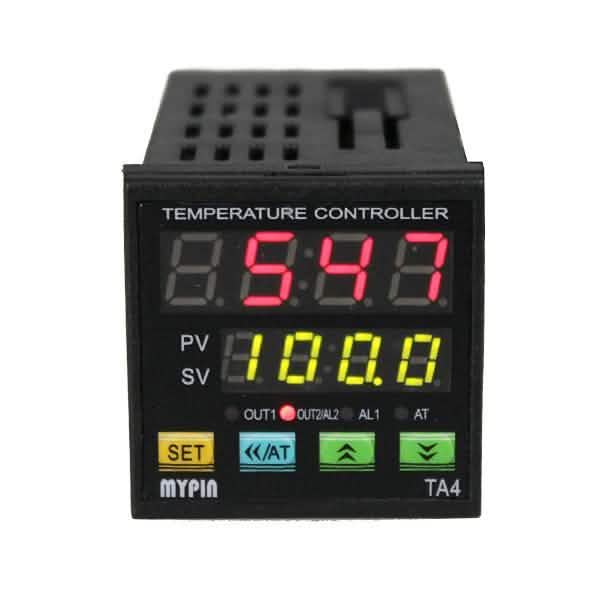

- Display: Dual display for Fahrenheit (F) and Celsius (C)
- Range: -1999 to 9999 (depends on the input signal)
- Main output: Relay, Normal open, AC 250V/3A or DC 30V/3A COSφ=1
- PID cooling/heating control (can choose normal alarm output by software)
- Alarm Output: 1 RELAY: capacity AC 250V/3A DC 30V/3A
- 7 different Dual Output combinations
- Accuracy: 0.3%

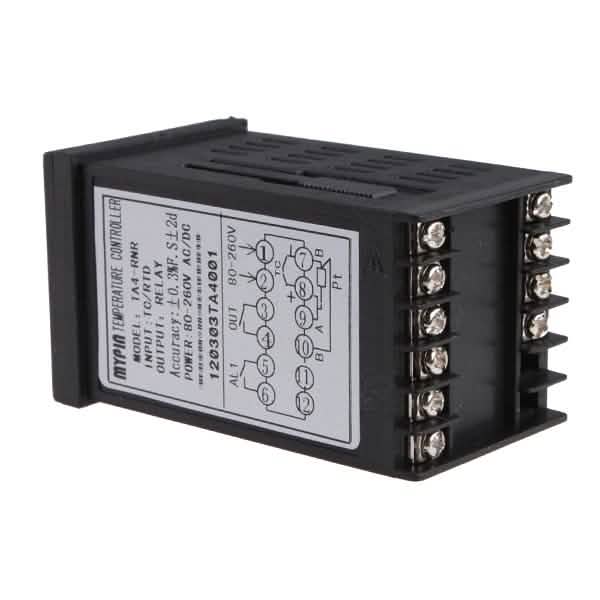

- Input: Thermo Resistor: PT100,
- Thermocouple: J,S,K,E,
- Alarm output: 1 line output,7 kinds of alarm mode: high / low / high deviation / low deviation / interval / out of interval /breakage alarm
- Weight: about 150g

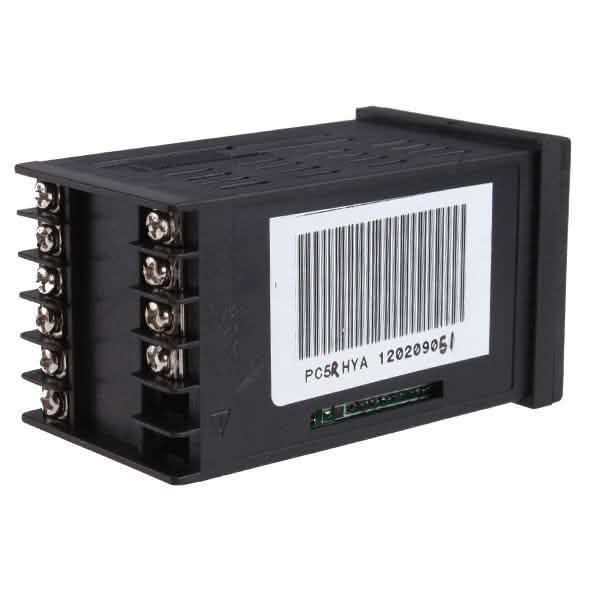

- Dimension: DIN: 1/16 (48mm x 48mm x 80mm)
